Windows Server WebShell Lab

Disclaimer: The enclosed PowerShell script and executable file will introduce vulnerabilities to a system upon execution for training purposes. Do not run this outside of a virtual environment.

Requirements:

Lab Setup:

This lab provides you with a program to run to make a virtual machine vulnerable. Do not run this outside of your virtual machine. This will make the VM susceptible to attack.

When working with the provided script, warnings can be expected from a host machine with anti-malware programs installed. These provided resources deal with the same remote access tools that are often leveraged by threat actors with malicious intent.

Before powering up the VM, take a snapshot of your virtual machine if possible. This will allow you to revert it to a clean slate after completing the lab, allowing you to reuse the same machine after this lab.

Ensure that this Virtual Machine is connected in NAT mode. This will allow connectivity to the web server from both the host machine and other virtual machines on the same host machine.

PowerShell Script Steps:

Extract the lab archive inside your Windows VM. This can either be done by downloading the file inside the Virtual Machine or using VMware tools or VirtualBox shared folders to move files between your host and virtual machine.

Open PowerShell as an administrator. This can be done by right clicking on the Windows icon in the bottom left corner and clicking Windows PowerShell (Admin):

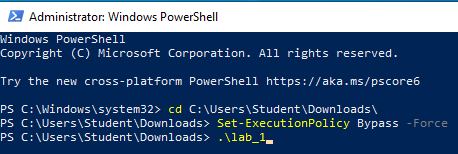

Change directories to the folder containing the PowerShell script. This will vary depending on the location of the file and the username on the Virtual Machine. Set the execution policy to allow the script to run, and then run it with the dot-backslash command:

Note: This PowerShell script is not intended to be reverse engineered to find vulnerabilities on the system, but rather emulate an authentic vulnerable environment that was caused by other means. This script can be removed from the virtual machine after running to completion.

User Accounts

For this lab, we will be using one user:

Background

This is a Windows Server environment intended to emulate a web server that might exist on a public network that is accessible to the world. While the presence of Linux on the Internet is very strong, Microsoft also maintains a sizable portion of web server usage with Internet Information Services (Microsoft IIS).

Web servers are what power websites to deliver content to users. By default, content will usually be accessed over Hypertext Transfer Protocol (HTTP) over port 80 on a web server. Though this can change when encryption is used (HTTPS), the underlying HTTP protocol is most often used to retrieve data from a web server.

Many different types of content are served up from web servers, with two main categories:

Static Content

Static websites are pages that don’t have any processing that goes on in the background that needs to happen to render a web page. Standard Hypertext Markup Language (HTML) is used on static web pages to deliver content to users that is unchanging. This means that once an HTML or other file is written to a server, the page will be delivered to the user as it was written.

Dynamic Content

Dynamic websites are increasingly common and allow much more flexibility on the web. Social media sites, blog sites, and any sites with non-repeatable content are considered dynamic sites. This allows a web server to offer users the ability to upload files, stream videos, and interact with a site through various inputs. This is what powers social media sites, browser-based email, and video streaming services. This often can have a negative impact on security for numerous reasons.

In this scenario, the virtual machine that you are accessing is a small web server with some static and dynamic content hosting some security training resources.

Initial Access

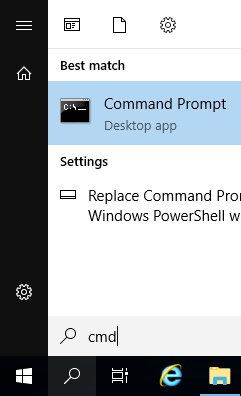

Login to the VM as John. The content on this server can be examined by directly searching through the file system and accessing the web server with a browser. Inside the virtual machine, click on the Windows search bar, type cmd, and click on the Command Prompt:

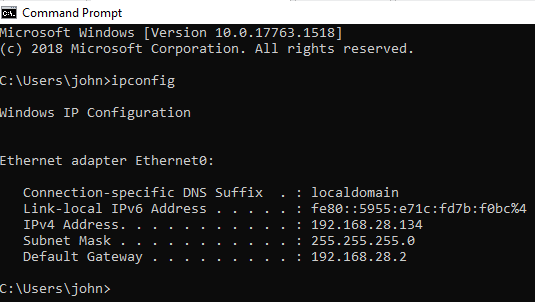

Inside the command prompt, run the ipconfig command to obtain the virtual machine’s IP address:

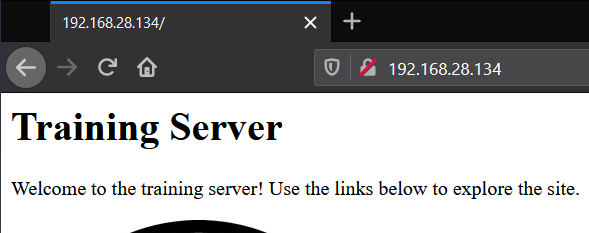

Take note of the value marked IPv4 Address. This will be the address that can be used to access the server. If the virtual machine is configured in NAT mode, this IP address should be accessible from a web browser on the host machine:

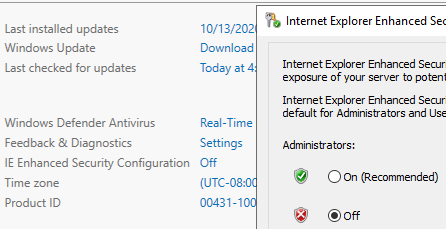

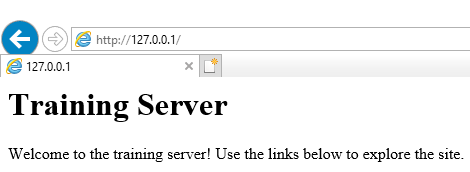

If another machine is not available, the localhost address or IP address of the machine can be used on a web browser on the server itself. If Internet Explorer is used, ensure that Internet Explorer Enhanced Security Configuration is disabled in the Local Server section of the Server Manager:

For exploring the server’s files directly, you will need to explore the contents of the web server’s root directory. This is the overarching folder that contains the content accessed over the web. The folder structure in a web server’s root directory matters for serving up content.

Sending a request for the website’s root page is synonymous with typing in the IP address with a single slash or no slash in a web browser. By default, index.html is the file that is served up when requesting the website’s root page.

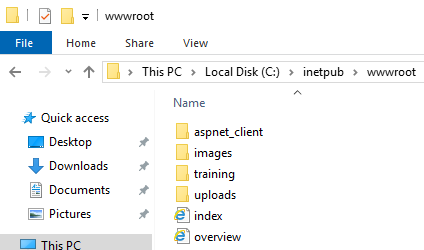

Navigate to C:\inetpub\wwwroot on the server. This is the default folder, or root directory, that Microsoft IIS will use to serve up pages. Examining the contents of the website’s root directory shows that the file index.html is the default page served up at the website’s root:

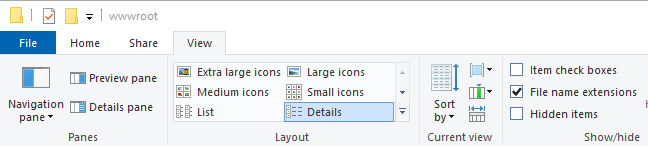

Enable file name extensions in Windows Explorer to examine the types of files on the server:

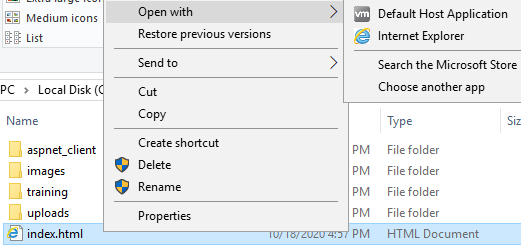

Right-click on index.html and click Open with and then Choose another app:

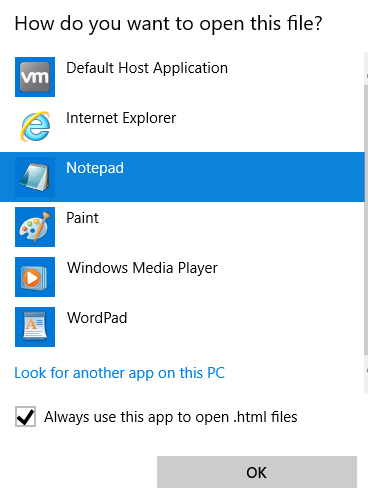

Select More apps and then Notepad to examine the contents of the file:

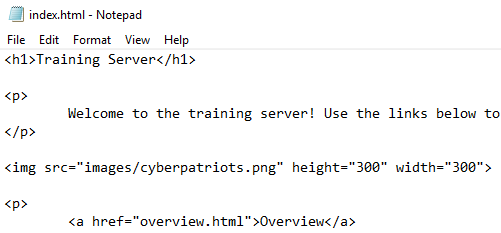

The raw HTML is visible in this file. HTML is composed of various tags encapsulated in <> symbols and is relatively easy to start learning. Search for different tags here or with a search engine to understand what each tag does on a page.

Exploring Web Directories

As we saw previously, the location of index.html automatically served up the page when the root web page of the server was requested. From the web browser, click on Training Resources and take note of the URI bar. The actual file structure of the web server mimics the slashes in the URI that denote folders. Inside the training directory on the file system, the page’s raw HTML can be opened in Notepad using the same method as before.

Explore the pages on the server in a web browser. Do you notice any other file types than HTML?

The file located at /uploads/uploader.aspx is one example of dynamic content on a site. This gives the ability for users to upload files to the web server. Try uploading an image through this page to the server. Can you locate where the uploaded file went on the server?

IIS Dynamic Content Overview

Using the same method as before, open uploader.aspx in Notepad. This bears some noticeable similarities and differences to HTML files. ASPX stands for Active Server Page Extended and is part of the Microsoft solution for dynamic web content. ASP.NET is the overarching solution that encompasses web developer programs used on Windows Servers to provide dynamic content on web sites.

A page’s language can be discovered in the first line of the page, as multiple languages are supported in ASPX sites. In uploader.aspx, note the UploadButton_Click function:

Note that saveDir is referencing a folder called uploads. Using this information, locate the file that you previously uploaded.

Security Implications

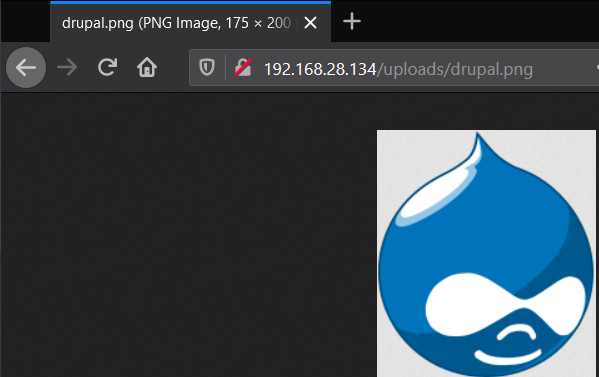

Take note of the location of your file on the web server’s file system, and try to navigate in a web browser to the image that you previously uploaded. This should be a path of /uploads/ followed by your file name. If the file name was drupal.png, the path to access that image through the web server might look like this:

With images in this case, there is little security concern about malicious usage on a web server. When further dynamic content is introduced, however, this can become a problem.

Note the file index.asp inside the uploads directory. Open up this file in Notepad. Can you figure out what it’s doing?

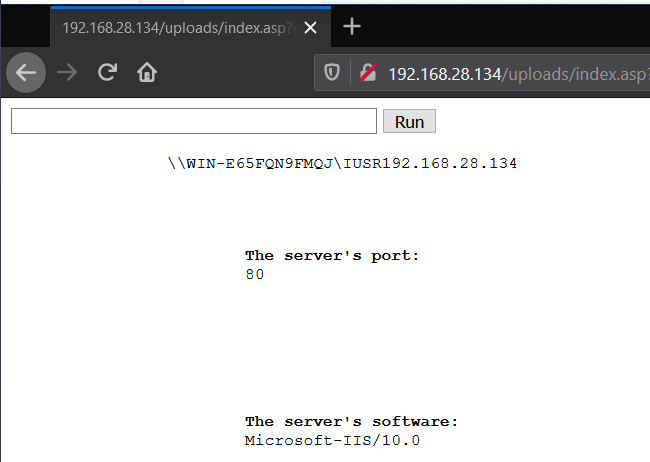

Request this file through the web server by typing in the server’s IP followed by /uploads/index.asp.

Go to the input bar and type ping google.com. The output of this command should be displayed on the page after it runs.

This is an example of an Active Server Page (ASP) webshell. ASP precedes ASPX in age but maintains similar features. Placing a command in the input box and clicking Run will execute this command on the server. Inspecting the file itself shows that this web shell is placing the command on the request line as part of the HTTP GET request.

The above line shows that the command itself is present in the request URI.

Due to the file uploader page present on this site, this file could have been placed here from an intentional malicious upload. When files are uploaded into web-servable directories that serve up dynamic content, the risk of web shells allowing remote access to the server is high.

Inspect other files in this directory. Another file, myfile.aspx is present inside of the uploads directory. Inspect its contents and take note of what you see. Now, try to access this file with a web browser. Can you find the password inside the file contents?

The default password admin is located in cleartext in myfile.aspx here. Enter it into the page and explore this site. Through this web shell, an attacker can execute commands, browse the file system on the server, and more. Through uploading this file, an attacker can now maintain access to the server by using this page.

Mitigation

Web server misconfiguration and lack of input sanitization are some of the most popular reasons why web shells are introduced on web servers. Though the uploads site tells the user to upload an image, the server does not check that these files are truly images. Further, putting these files in a location that they can be served up as pages puts the server at risk.

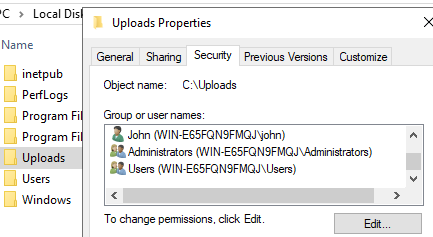

One fix to this problem would be to put files in a place where they can’t be served up by the web server software - outside the root web directory. Create a new folder called Uploads under the C drive. Edit its permissions:

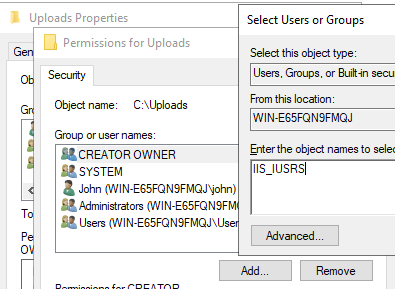

Add the web server’s user group, IIS_IUSRS:

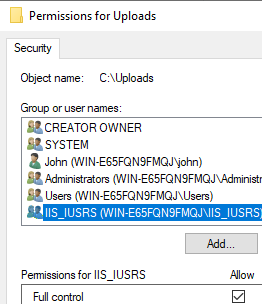

Now, make sure that this group has full control over the folder:

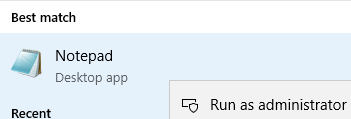

Now, to edit where uploader.aspx is placing its files, right click Notepad in the start menu to open it as an administrator:

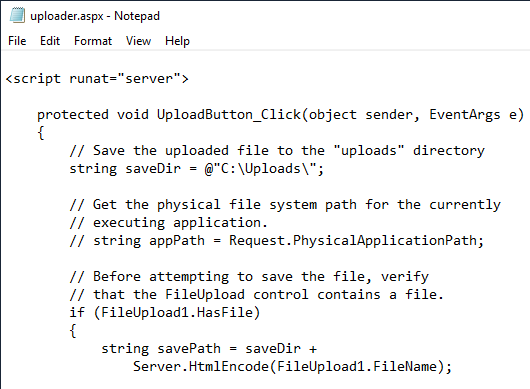

In Notepad, open up the uploader.aspx file through the File -> Open menu. Change the file to look like the following:

This will comment out the appPath variable and change the saveDir variable so the application uploads files to the new directory that isn’t directly served up by the server. Save this file and test uploading an image again. If this is successful, the uploaded file should be created in the directory C:\Uploads.

Detections

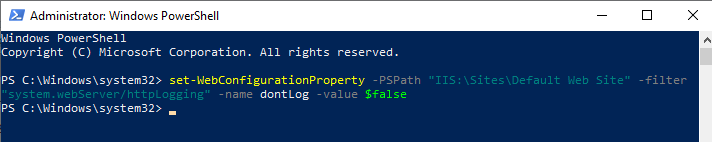

For webshells such as index.asp that we found passing commands in GET requests, logging URIs accessed on the server can be extremely helpful in detecting webshell activity. To enable logging for this site, open PowerShell as an administrator and type the following command:

To demonstrate this logging, access index.asp through the web browser and type in the command whoami. This is a command used by attackers to check what user they are running commands as.

Now, to check this file, open explorer and navigate to the directory C:\inetpub\logs\LogFiles\W3SVC1. Open the file ending in .log. The command that was executed through this webshell can be seen as part of the request URI:

While this method can be used to detect webshells using GET requests, POST requests will not be fully logged. This is due to POST requests not passing along details in the URI. This can be noted by visiting myfile.aspx in a web browser and viewing the URI bar in the browser.

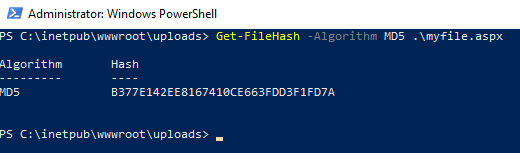

While network detection mechanisms in this case will involve more complex traffic monitoring, checking file hashes is also a great way to detect common webshells. In an administrative PowerShell prompt, the MD5 file hash of myfile.aspx can be found using the following command:

Copy this file hash and visit https://www.virustotal.com/gui/home/search. Paste in this hash and press enter. VirusTotal is a service that will compare hash detections among many providers to try to determine if a file is malicious. For providers that marked the file as detected (in red), do you notice any common signature names?

This file is an ASPXSpy webshell that is commonly used by attackers all over the world, and is noted by MITRE as a common piece of malware used for attacks. Automatically scanning for hashes on web server directories, especially user upload directories, is a good detection mechanism for webshells that are commonly used.

Remediations

Once a web shell has been identified, the best way to remediate the threat is to remove it from the web directory. If files are wanted for further analysis, they can be moved to a different location on the machine where they can’t be served up by the web server software. Test this with the web shells that were identified by deleting them or moving them to a folder outside of C:\inetpub\wwwroot. Try to request these files in a web browser. If these requests fail, the remediation was successful.
